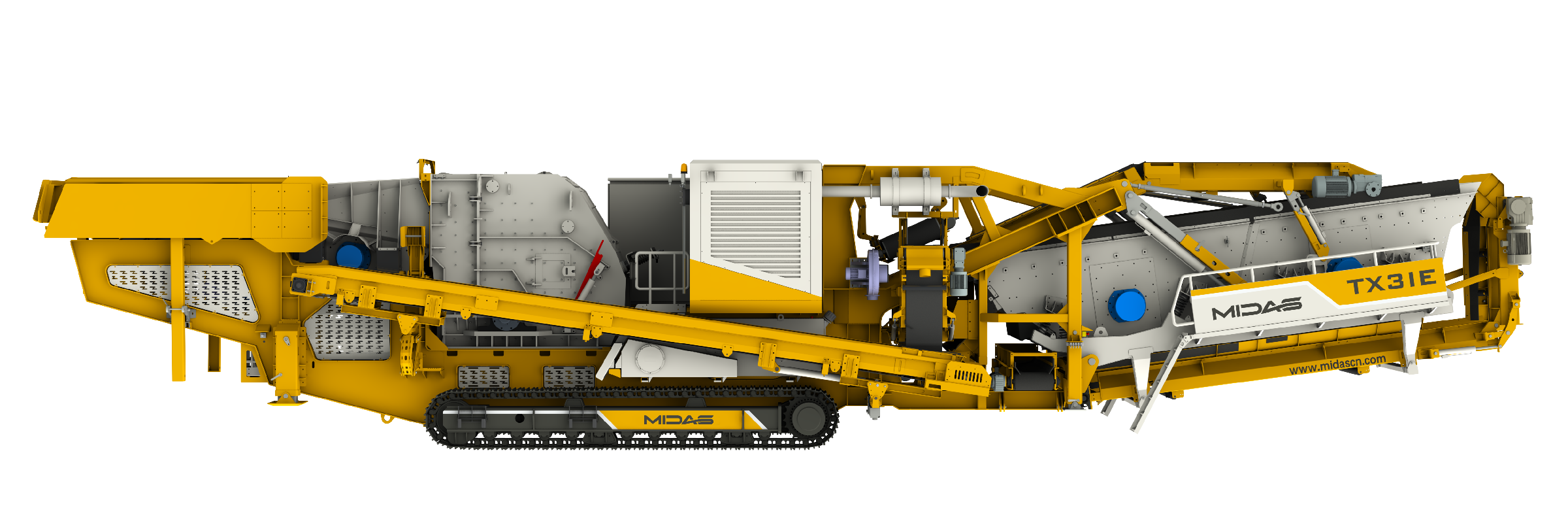

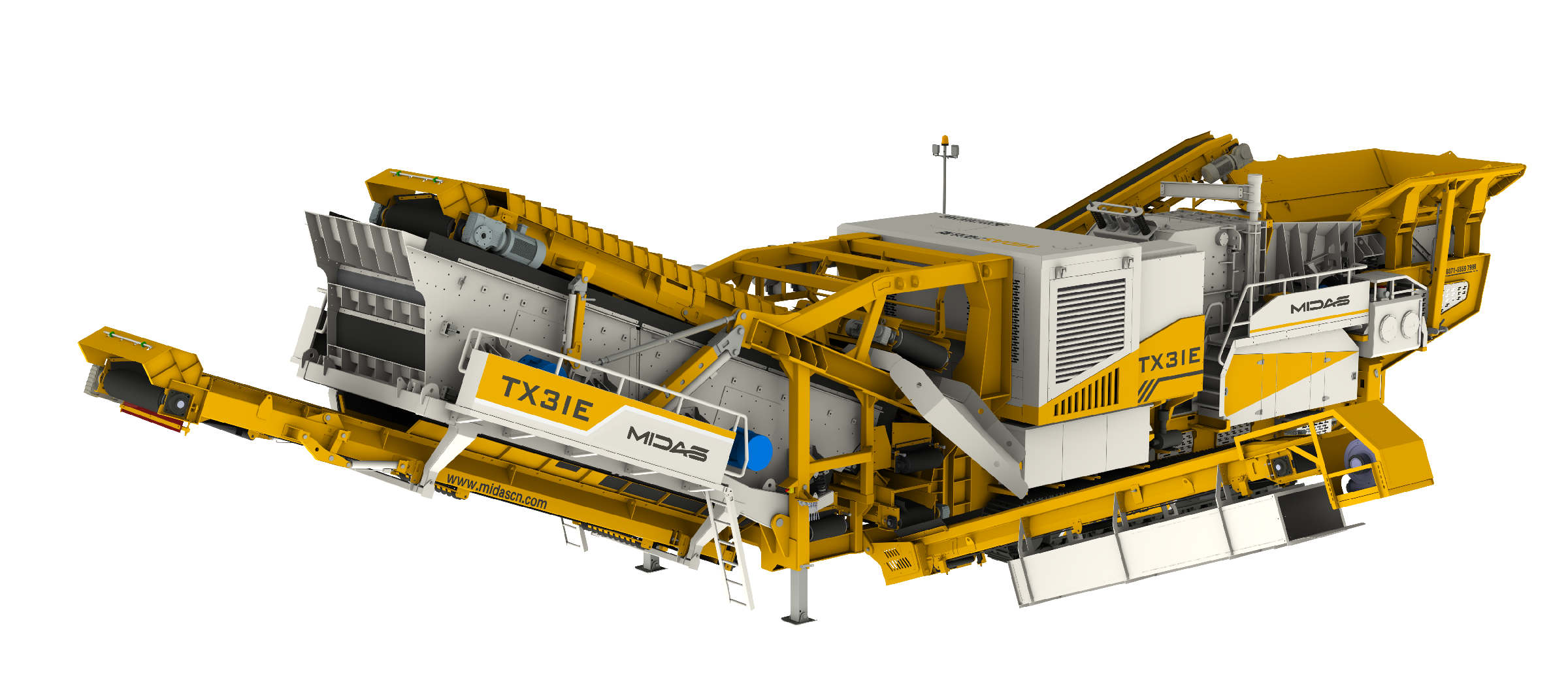

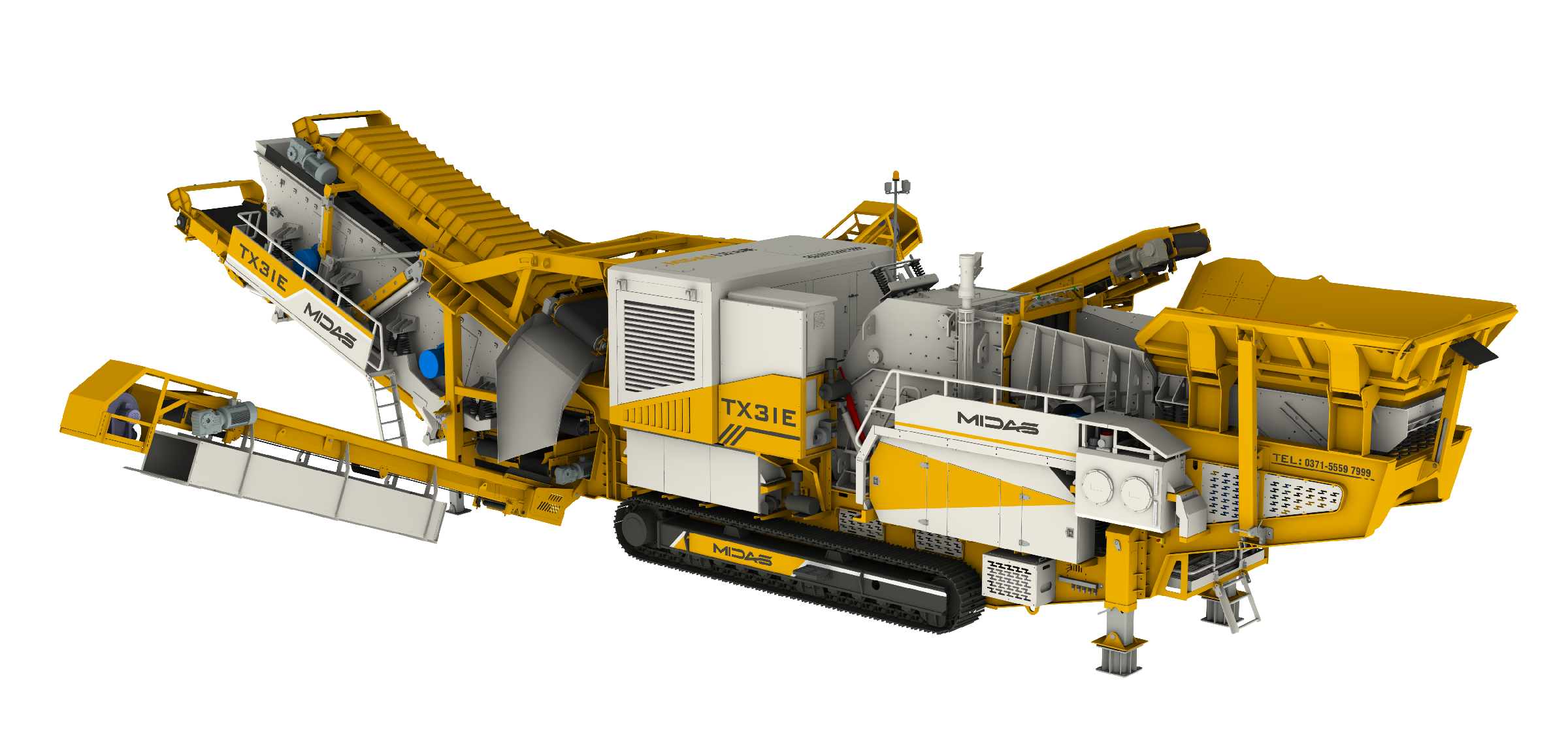

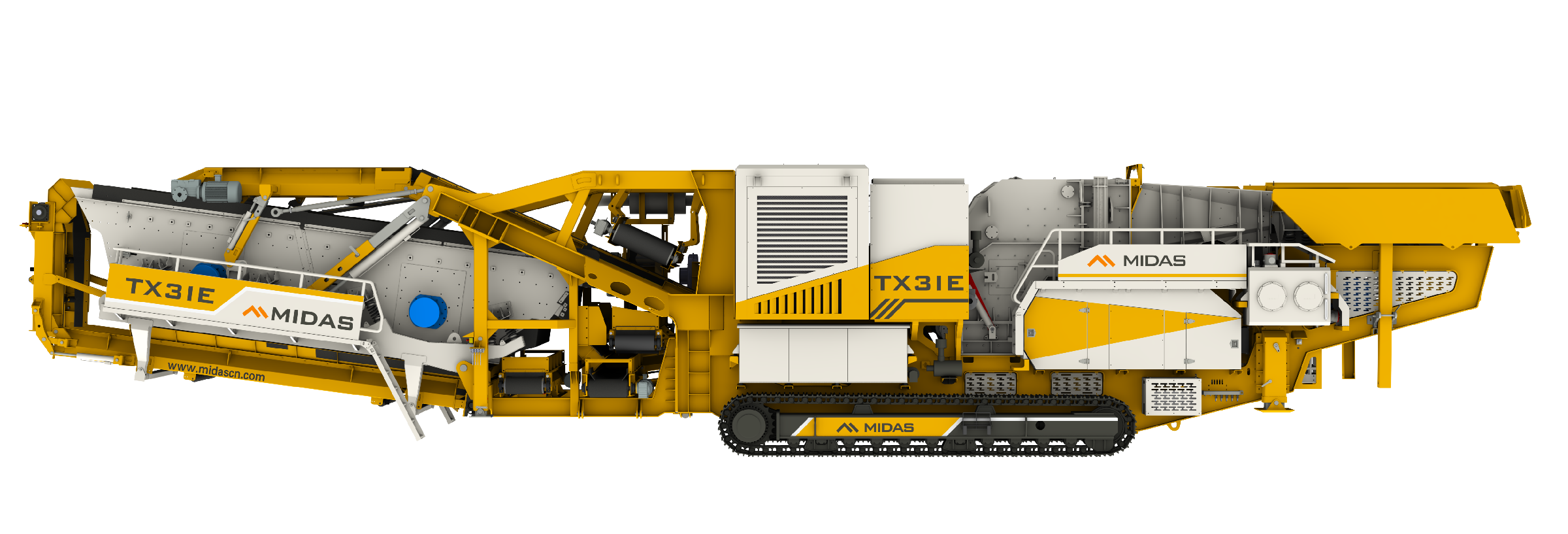

Impact crushing and screening plant TX3IE
Integrated Crushing and Screening,Dual-Power (Diesel and Electric),PLC One-Touch Smart Start

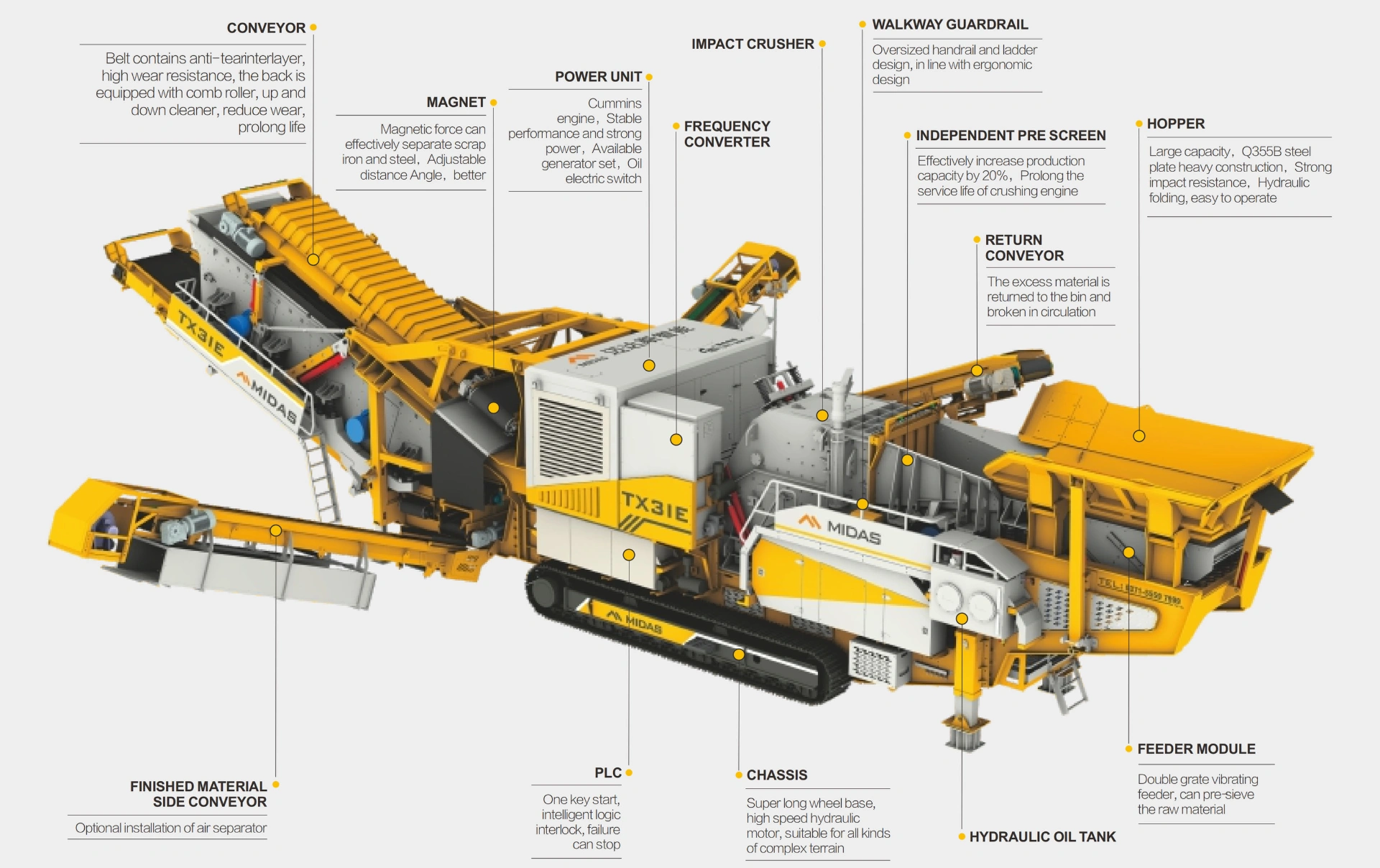

The TX3IE is the high-efficiency king in the field of track-mounted mobile crushing and screening for medium-hard rock. It integrates three core units—a vibrating feeder, a cone crusher, and a three-deck dual-stage screen—to achieve the same crushing and screening performance as a separate production line. Furthermore, it is equipped with an independent pre-screening device to further enhance crushing efficiency. It has also been upgraded to a hybrid (diesel-electric) power system, allowing for a one-touch start to begin production as soon as it arrives on site
Application scenarios: secondary and tertiary crushing and screening of medium and high hardness materials, secondary crushing and screening of hard rocks (granite/basalt/cobblestone/diabase, etc.).
Processing capacity:
200-400 （t/h）
Total system power:
376.7 （KW）
Service hotline:
Product Details
Product Specifications
|
Whole plant model |
Weight (T) |
Power of complete machine (KW) |
Crusher model |
Crusher size |
Optional |
|
MI260RTE |
68 |
322 |
PF1213 |
1200*1300 |
Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 400kw Power system |
|
MI350RTE |
74 |
352 |
PF1315 |
1300*1500 |
Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 500kw Power system |
|
TX2IE |
65 |
325.3 |
PF1213 |
1200*1300 |
Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 400kw Power system |
|
TX3IE |
88 |
376.7 |
PF1315 |
1300*1500 |
Independent prescreening system、Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 500kw Power system |
