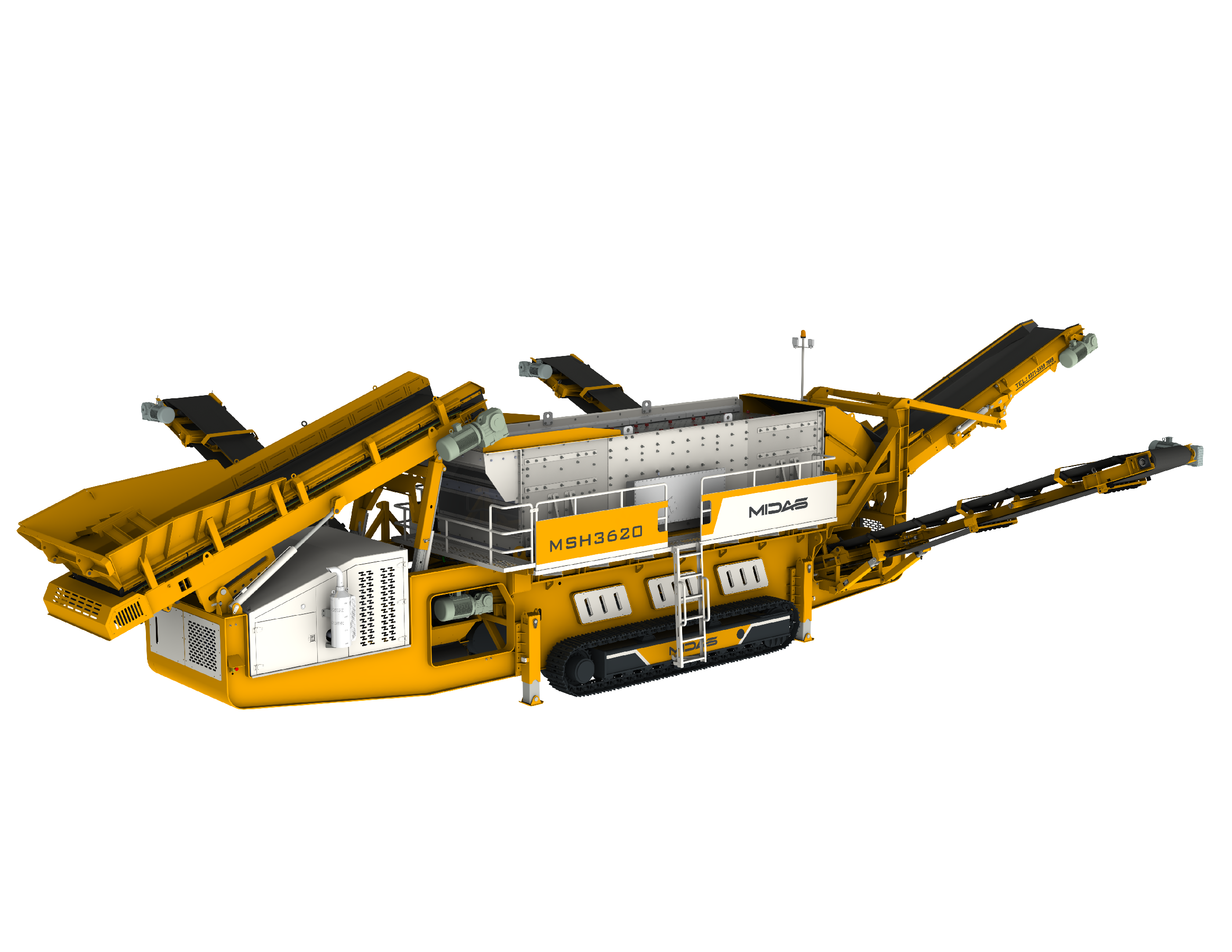

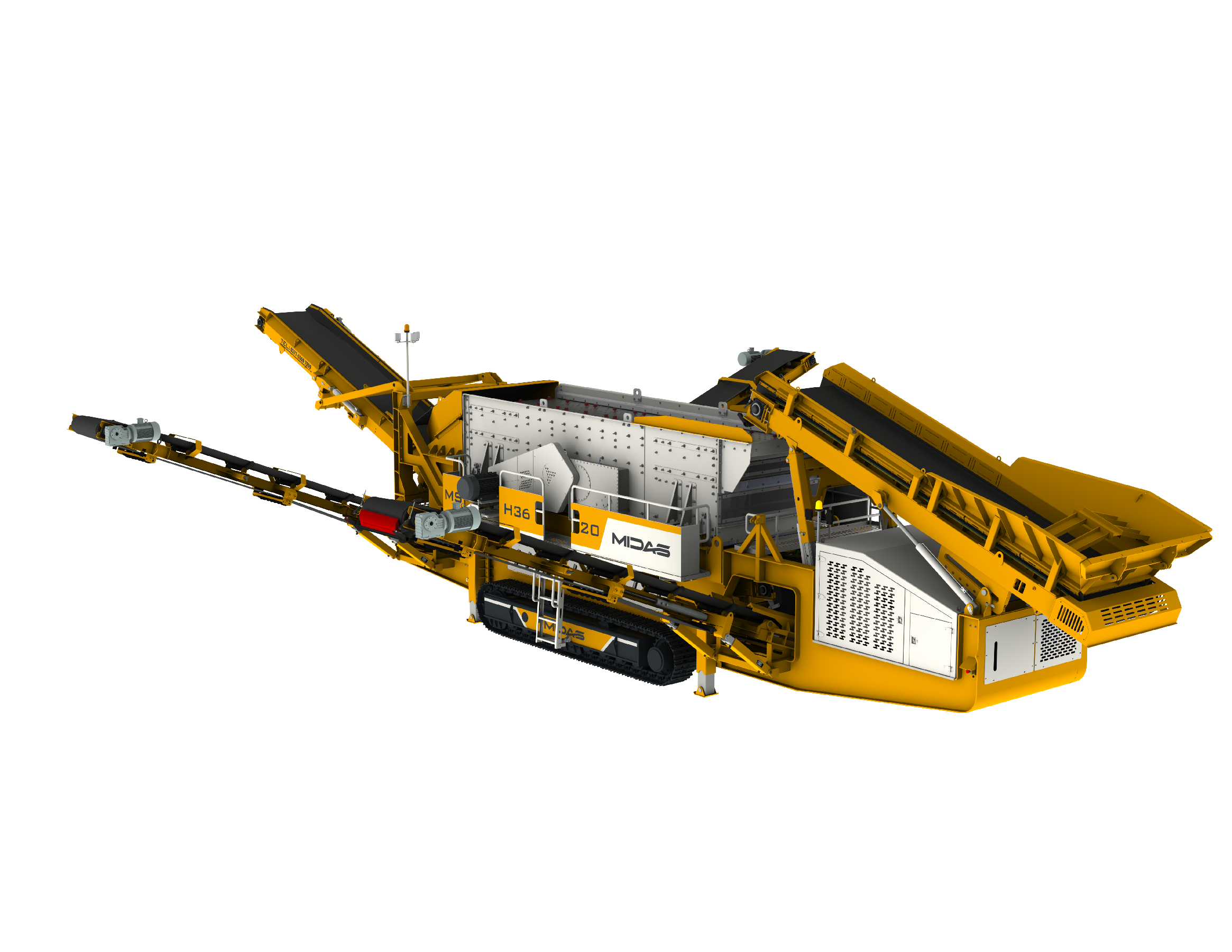

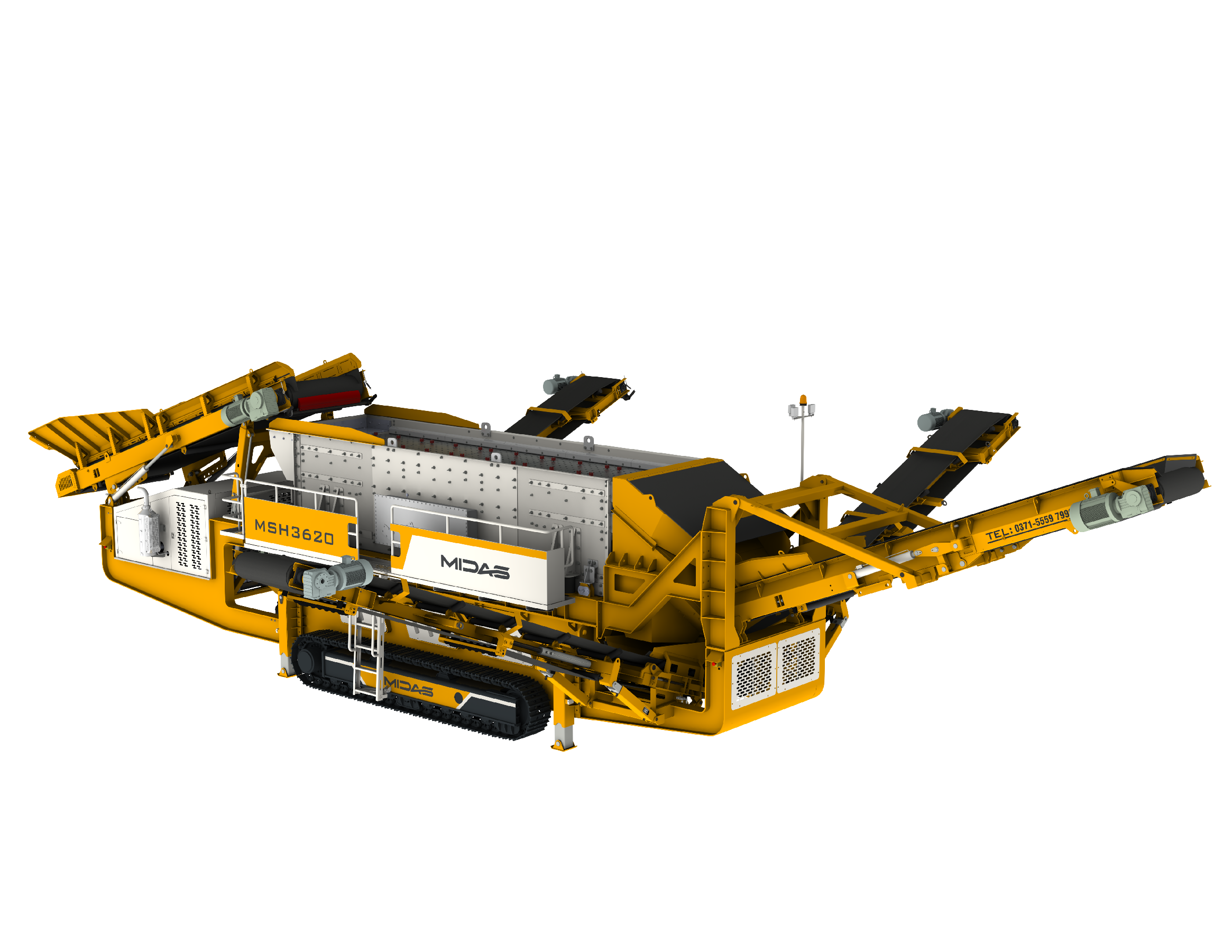

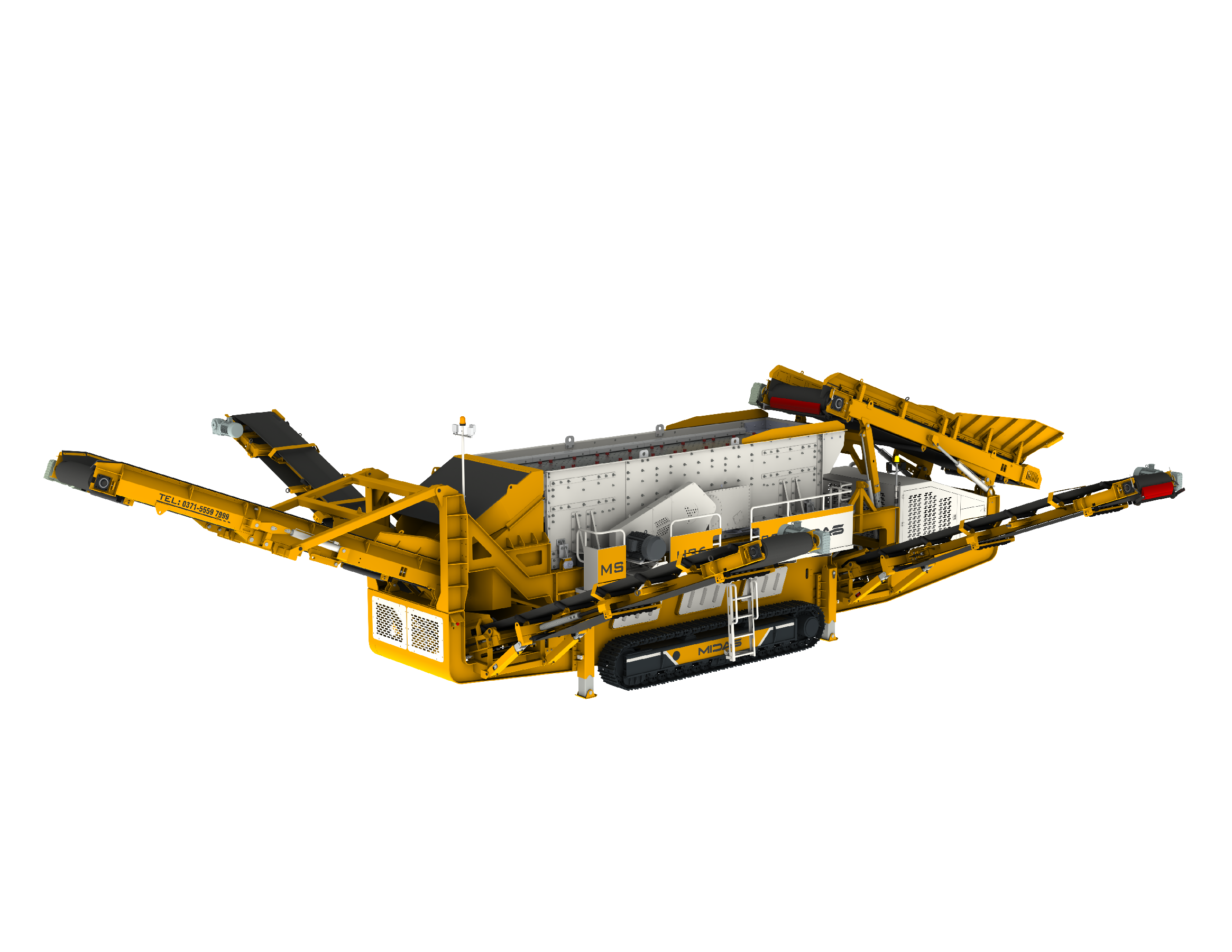

Tracked Mobile Horizontal Screening Plant
Large Capacity,High Grade Screening,Screening of Sticky Materials

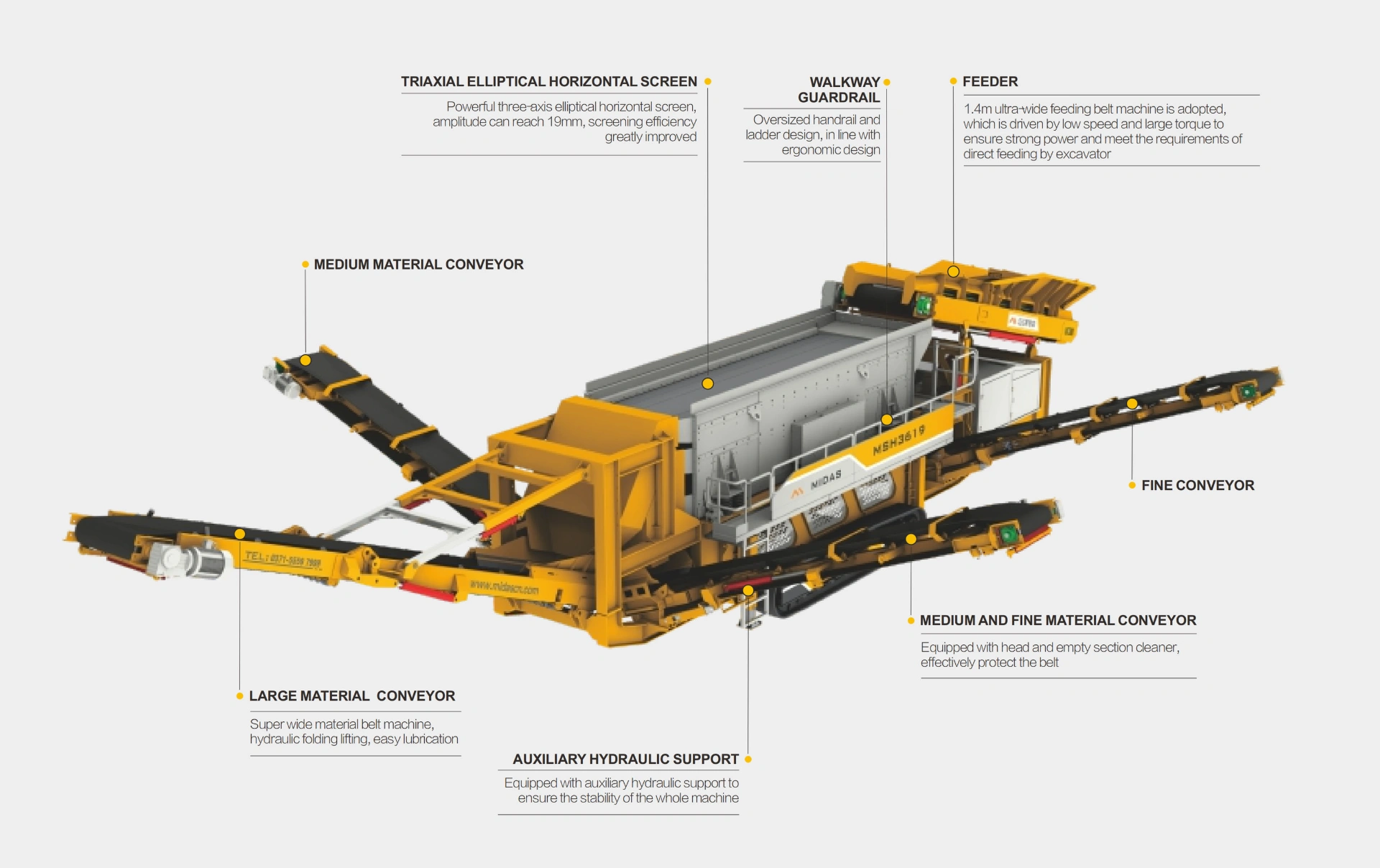

The MIDAS MSH Series Tracked Mobile Horizontal Screening Plant utilizes a three-axis driven elliptical vibration trajectory, combining the advantages of both circular and linear vibrating screens. With its adjustable amplitude and synchronized excitation, along with a large-torque decelerating feeder to ensure uniform feeding, it performs exceptionally well on highly viscous and difficult-to-screen materials. This makes it widely applicable in fields that require high screening efficiency and accuracy. The entire machine offers a large throughput, strong stability, a wide variety of materials, and high-grading accuracy.
Application scenarios: This plant is used for high-efficiency and high-precision screening of medium and fine materials, the grading of aggregates for high-standard projects like highways, railways, and bridges, and the large-capacity screening of finished products from weathered Gobi stone, which often has a certain viscosity.
Processing capacity:
300-800 （t/h）
Total system power:
93 （KW）
Category:
Service hotline:
Product Details
The MIDAS MSH Series Tracked Mobile Horizontal Screening Plant utilizes a three-axis driven elliptical vibration trajectory, combining the advantages of both circular and linear vibrating screens. With its adjustable amplitude and synchronized excitation, along with a large-torque decelerating feeder to ensure uniform feeding, it performs exceptionally well on highly viscous and difficult-to-screen materials. This makes it widely applicable in fields that require high screening efficiency and accuracy. The entire machine offers a large throughput, strong stability, a wide variety of materials, and high-grading accuracy.
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
MSH3620 | 43 | 93 | HS3620 | 6100*1930 |
|
MSH3620E | 45 | 93 | HS3620 | 6100*1930 | Oil and electricity dual-purpose system 150kw Power system |
