Tracked Mobile Heavy-duty Screening Plant
Soil-rock Separation,Heavy-duty Frame,Stable and Durable

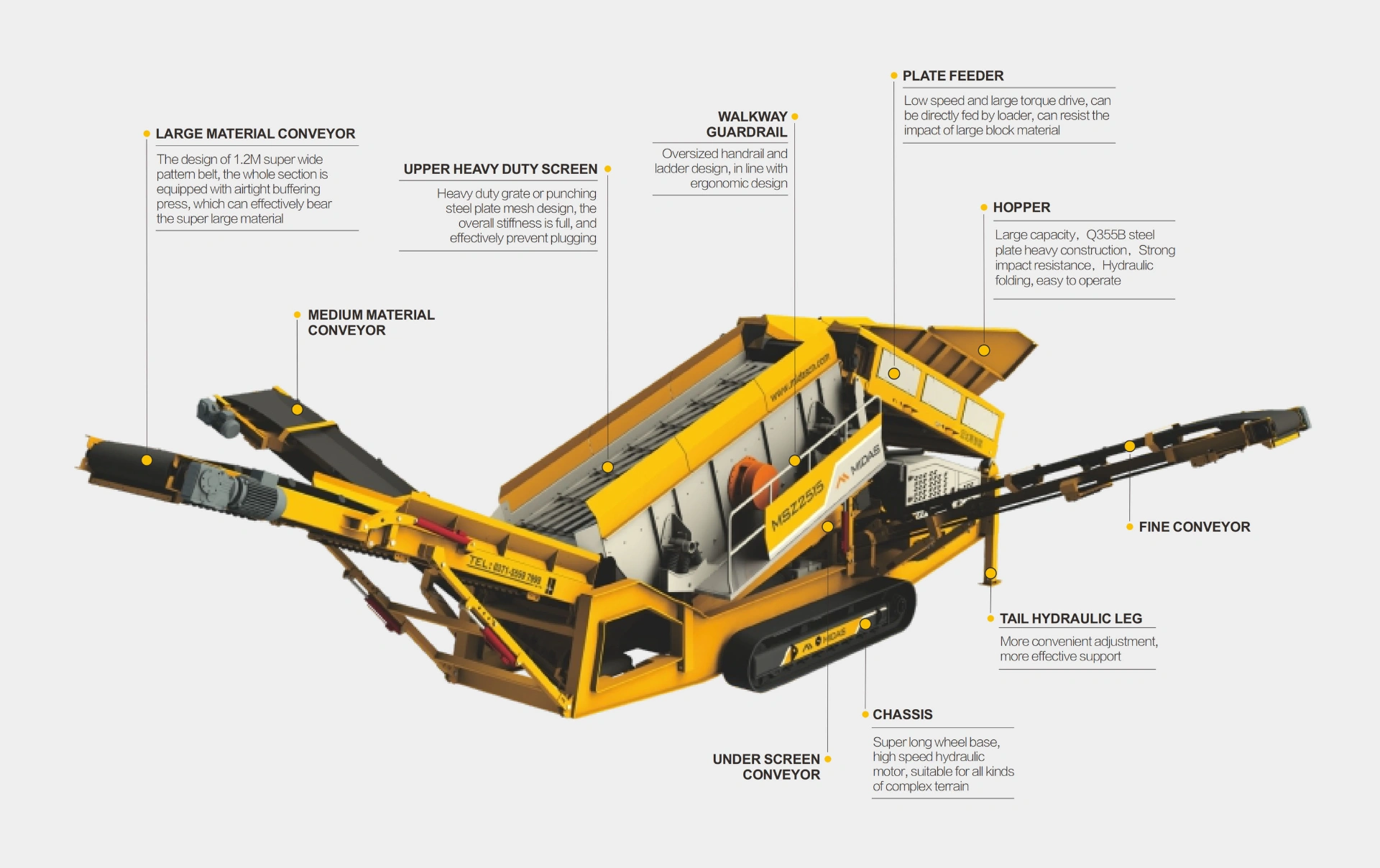

The MIDAS MSZ Series Tracked Mobile Heavy-duty Screening Plant is equipped with a large-torque apron feeder, a first-deck heavy-duty grizzly screen, and a 1.2-meter ultra-wide patterned conveyor belt. This configuration effectively handles the screening and transfer of oversized materials. Designed for primary screening, it is particularly suitable for specific applications like soil and rock separation and the preliminary screening of construction waste, achieving exceptional results.
Application scenarios: preliminary screening of soil-rock separation, mining, construction waste screening, coal gangue screening, and sand aggregate screening.
Processing capacity:
280-680 （t/h）
Total system power:
66-101 （KW）
Category:
Service hotline:
Product Details
The MIDAS MSZ Series Tracked Mobile Heavy-duty Screening Plant is equipped with a large-torque apron feeder, a first-deck heavy-duty grizzly screen, and a 1.2-meter ultra-wide patterned conveyor belt. This configuration effectively handles the screening and transfer of oversized materials. Designed for primary screening, it is particularly suitable for specific applications like soil and rock separation and the preliminary screening of construction waste, achieving exceptional results.
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
MSZ2515 | 34 | 66 | SZ2515 | 5000*1500 |
|
MSZ2515E | 35 | 66 | SZ2515 | 5000*1500 | Oil and electricity dual-purpose system 120kw Generator set |
MSZ2618 | 40 | 77.5 | SZ2618 | 6000*1800 |
|
MSZ2618E | 42 | 77.5 | SZ2618 | 6000*1800 | Oil and electricity dual-purpose system 150kw Generator set |
MSZ3618 | 46 | 101 | SZ3618 | 6000*1800 |
|
MSZ3618E | 48 | 101 | SZ3618 | 6000*1800 | Oil and electricity dual-purpose system 150kw Generator set |
