Crushing of Old Road Pavement
With High Throughput,A High Sand-making Ratio,Low Consumable Costs

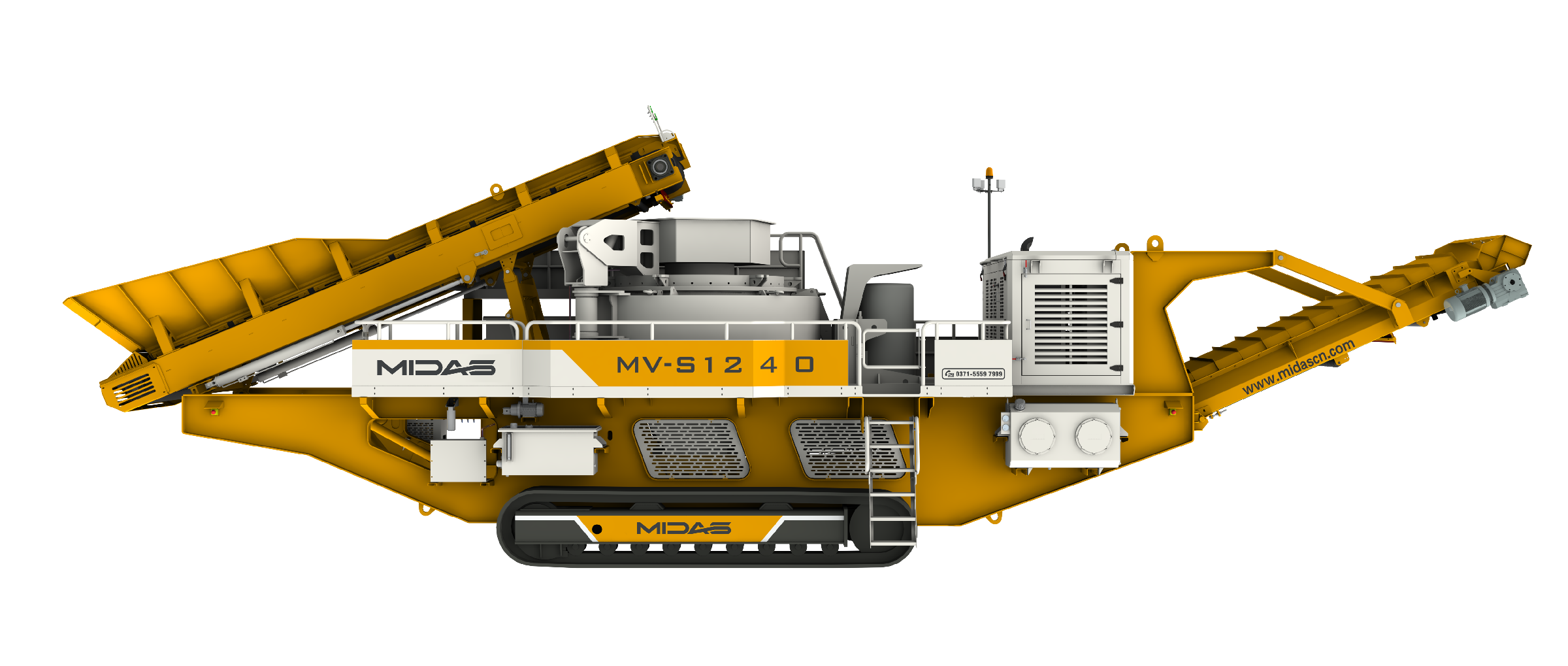

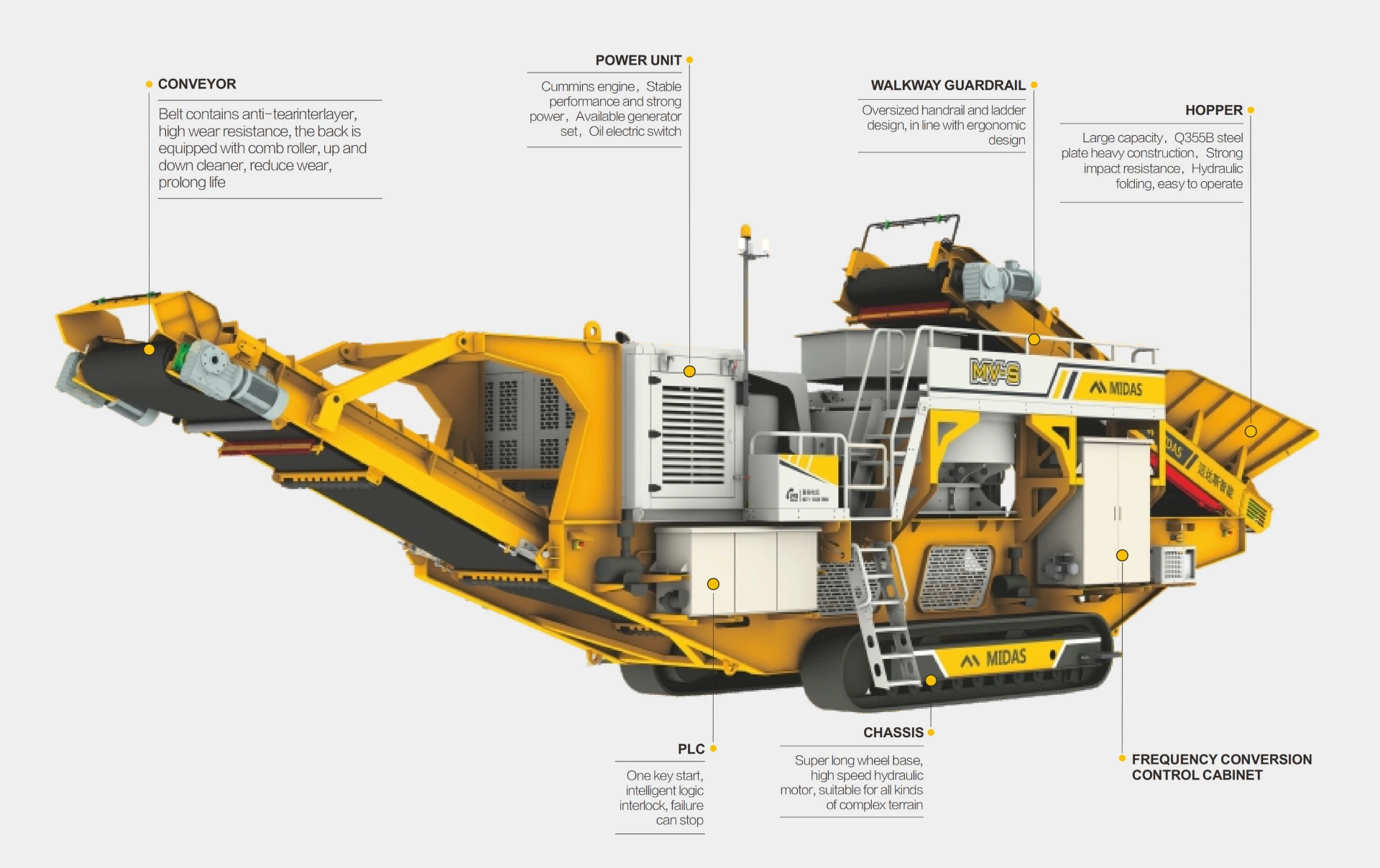

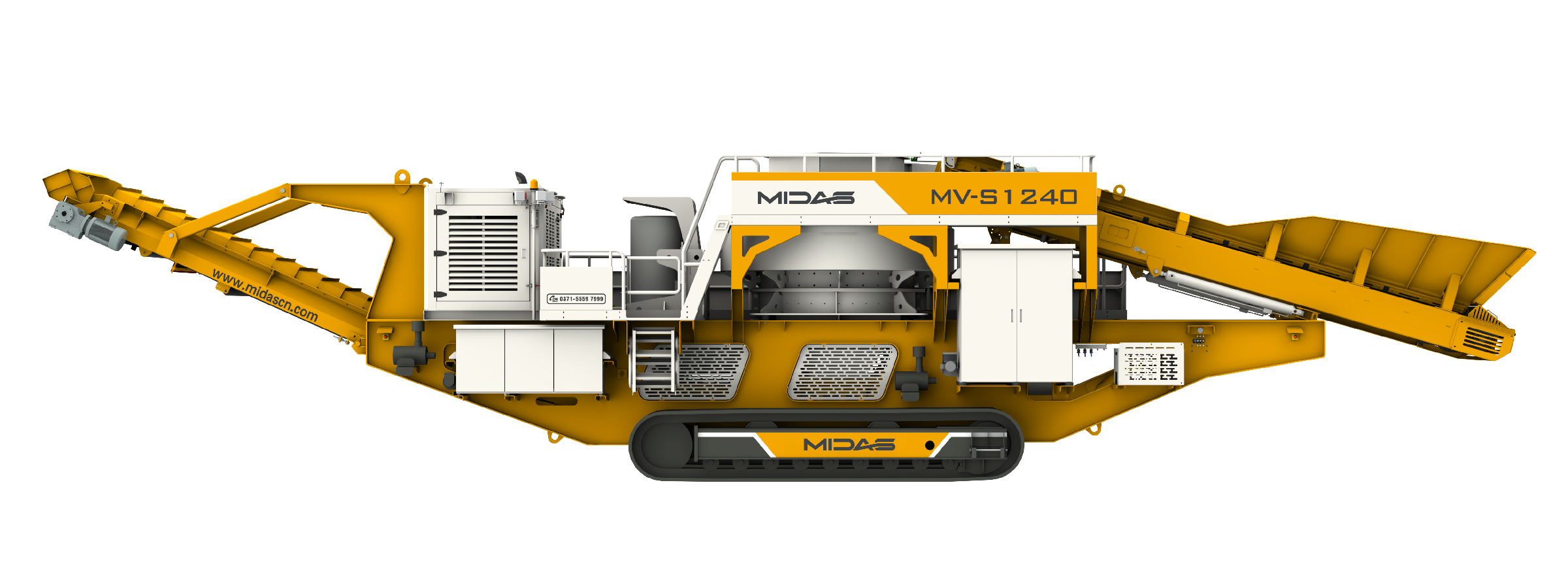

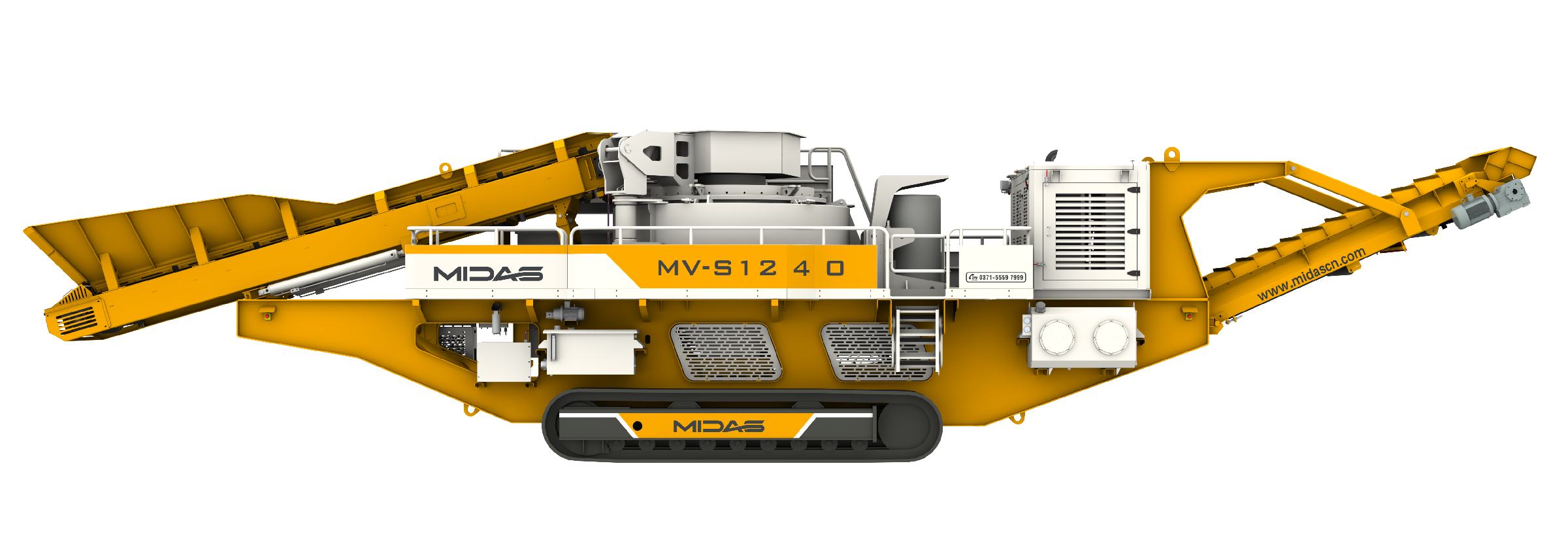

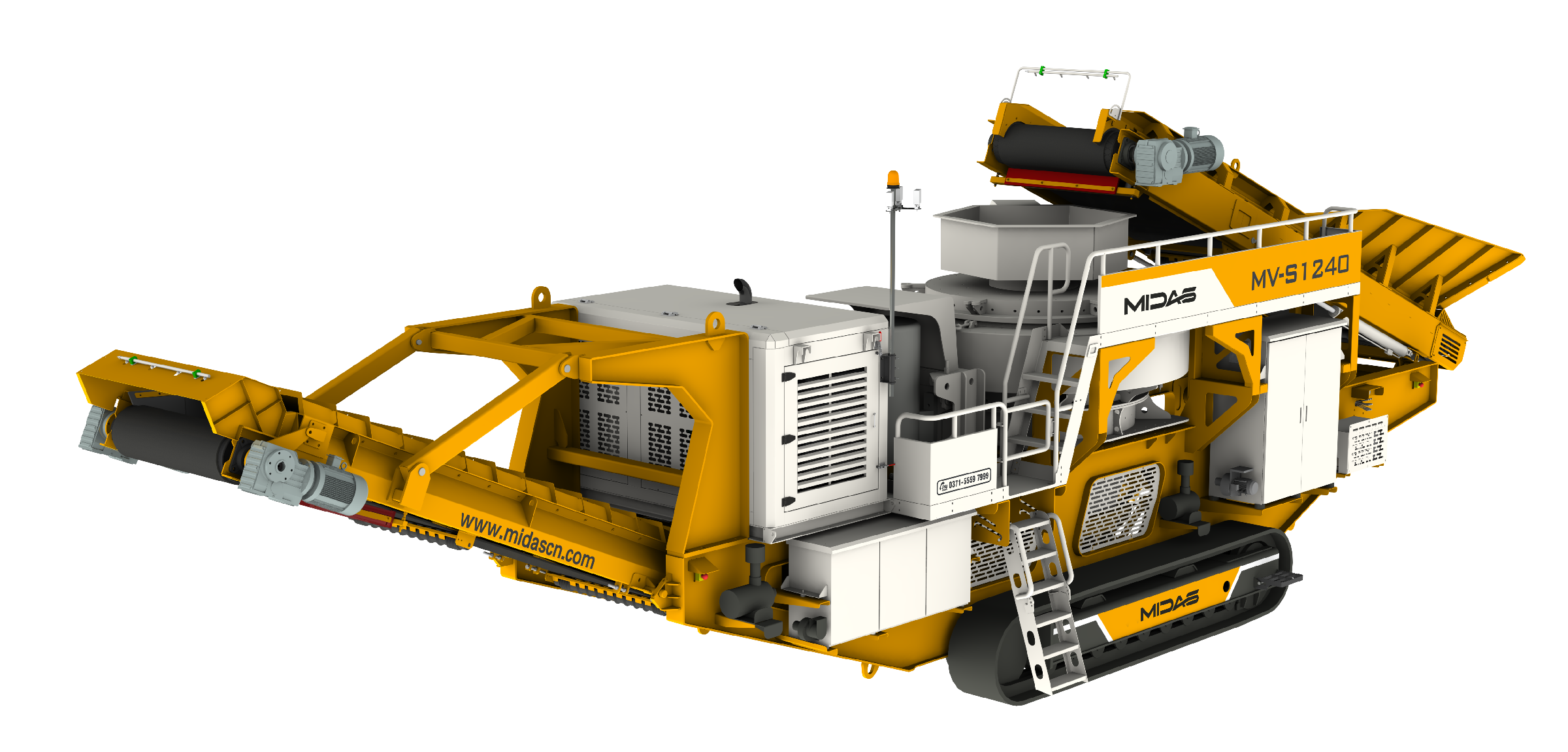

Midas MV-S series tracked mobile sand making plant, The main unit features a new impeller and a special sealing structure, resulting in low energy consumption and a long service life. It offers three optional drive modes: external electricity, electric and diesel integration, and full hydraulic drive. Suitable for sand and aggregate shaping or further sand making after secondary crushing. It is highly mobile, provides a large throughput, and delivers an excellent crushed particle shape.
Application Scenarios: material shaping, metallic and non-metallic ores, building materials, manufactured sand production, and metallurgical slag.
Processing capacity:
10-500 （t/h）
Total system power:
316.2-439 （KW）
Category:
Service hotline:
Product Details
Midas MV-S series tracked mobile sand making plant, The main unit features a new impeller and a special sealing structure, resulting in low energy consumption and a long service life. It offers three optional drive modes: external electricity, electric and diesel integration, and full hydraulic drive. Suitable for sand and aggregate shaping or further sand making after secondary crushing. It is highly mobile, provides a large throughput, and delivers an excellent crushed particle shape.。
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
MV-S900R | 42 | 316.2 | MBHS0925 | 950*230 | Return system |
MV-S900RTE | 48 | 328.5 | MBHS0925 | 950*230 | Double-deck screening、De discharge conveyor、Oil and electricity dual-purpose system 500kw Generator set |
MV-S1240 | 48 | 434 | MBHS1222 | 1200*230 |
|
MV-S1240E | 58 | 439 | MBHS1222 | 1200*230 | Oil and electricity dual-purpose system 600kw Generator set |
