Tracked Mobile Jaw Cone Crushing and Screening Plant
Hard Rock Nemesis,Integrated Breaking and Screening,A Creative Breakthrough

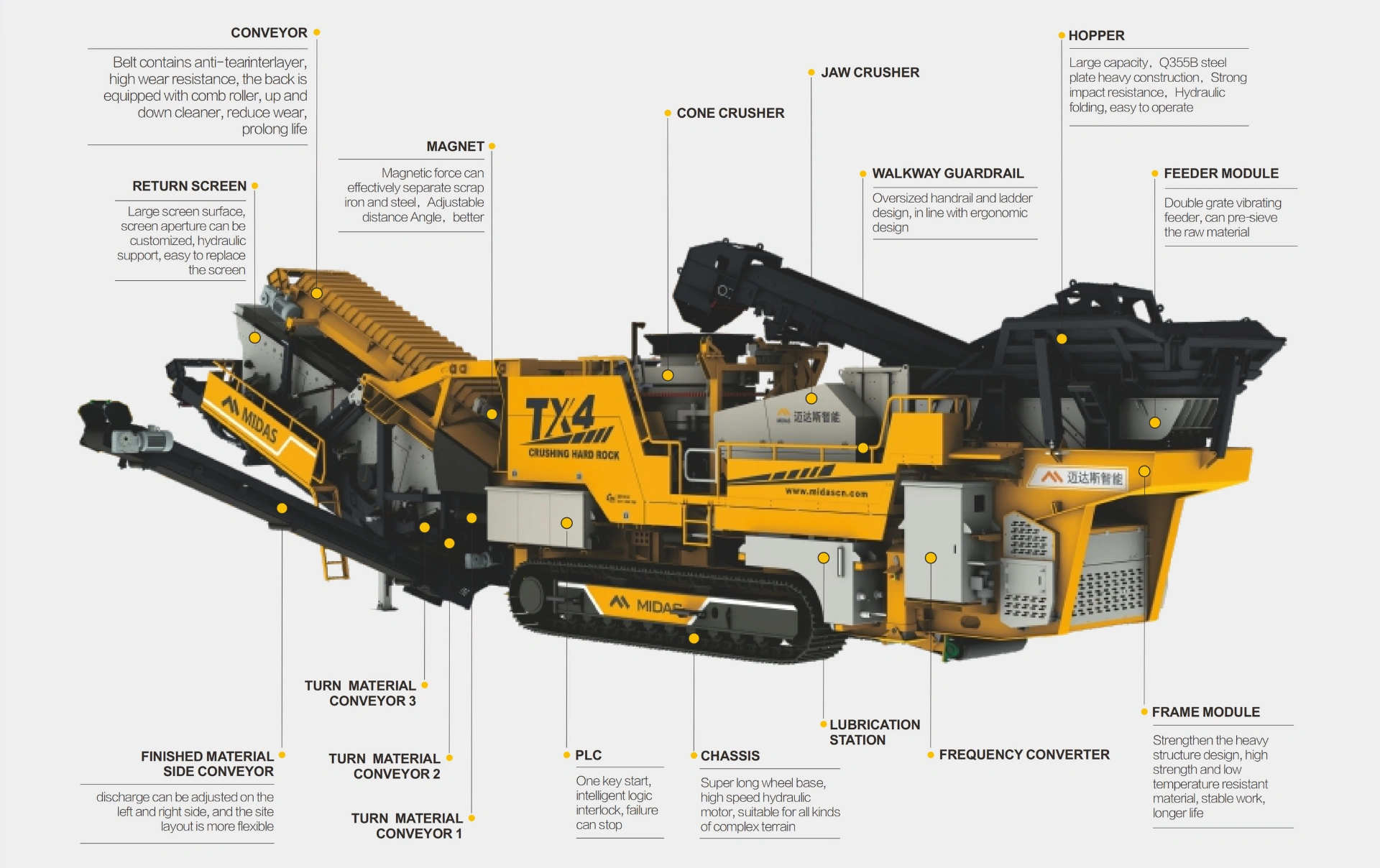

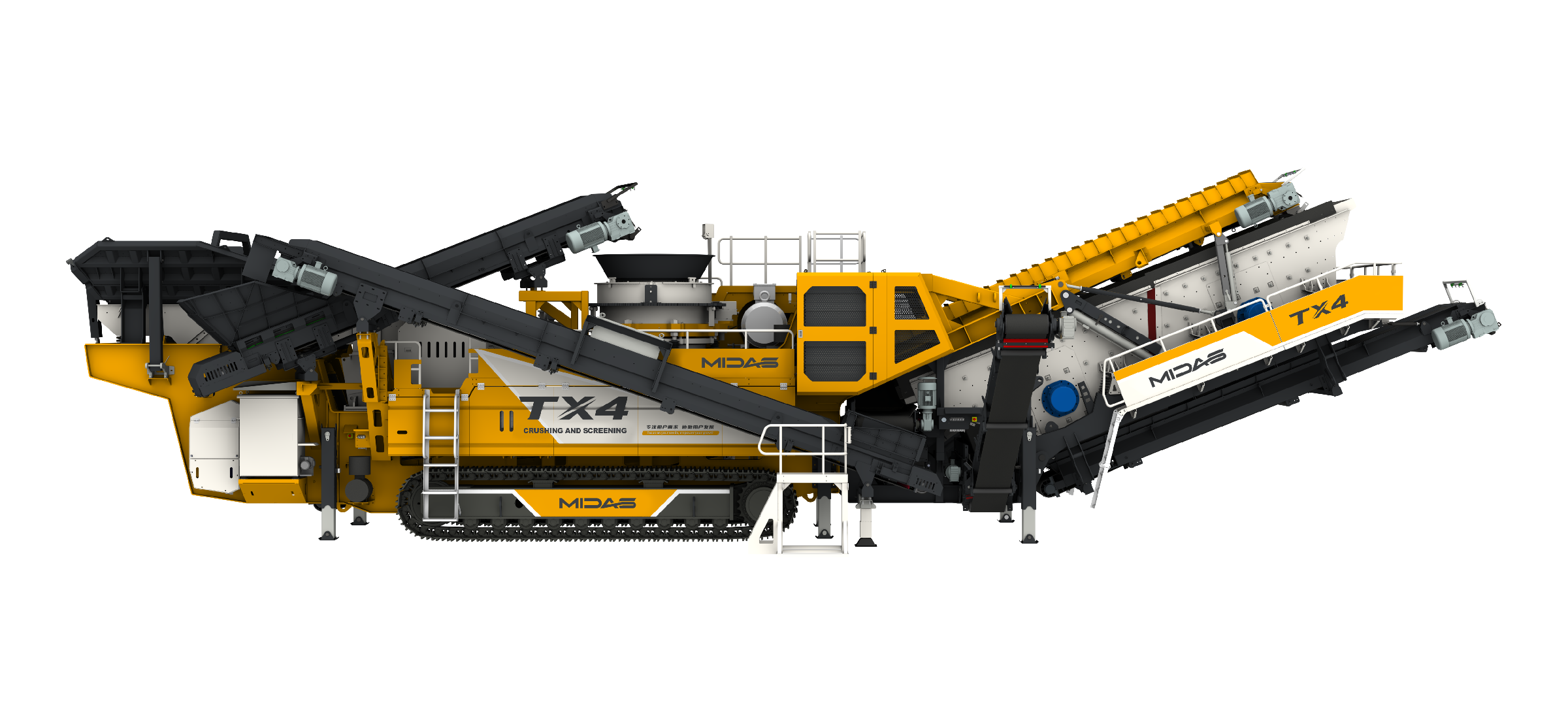

The TX4 is a masterpiece in the field of tracked mobile crushing and screening plant for hard rock. It creatively integrates four units—a vibrating feeder, a jaw crusher, a multi-cylinder hydraulic cone crusher, and a three-deck dual-stage screen. Through its ingenious structural design, it achieves the same crushing and screening performance as a separate hard rock production line, marking a new journey in mobile hard rock crushing and a breakthrough contribution from MIDAS to the industry.
Application : This plant is used for the secondary and tertiary crushing and screening of medium-to-high hardness materials, as well as for hard rock production lines where space is limited. It is also suitable for crushing and sand making of high-abrasion materials like pebbles, granite, and diabase from quarries (with SiO₂ content above 75%), and for pre-crushing iron ore before ball milling at large-scale mineral processing plants.
Processing capacity:
200-400 （t/h）
Total system power:
452 （KW）
Service hotline:
Product Details
The TX4 is a masterpiece in the field of tracked mobile crushing and screening plant for hard rock. It creatively integrates four units—a vibrating feeder, a jaw crusher, a multi-cylinder hydraulic cone crusher, and a three-deck dual-stage screen. Through its ingenious structural design, it achieves the same crushing and screening performance as a separate hard rock production line, marking a new journey in mobile hard rock crushing and a breakthrough contribution from MIDAS to the industry.
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
TX4 | 116 | 490.7 | MC113+MHP300+M2070 | 750*1130+1120+2000*7000 |
