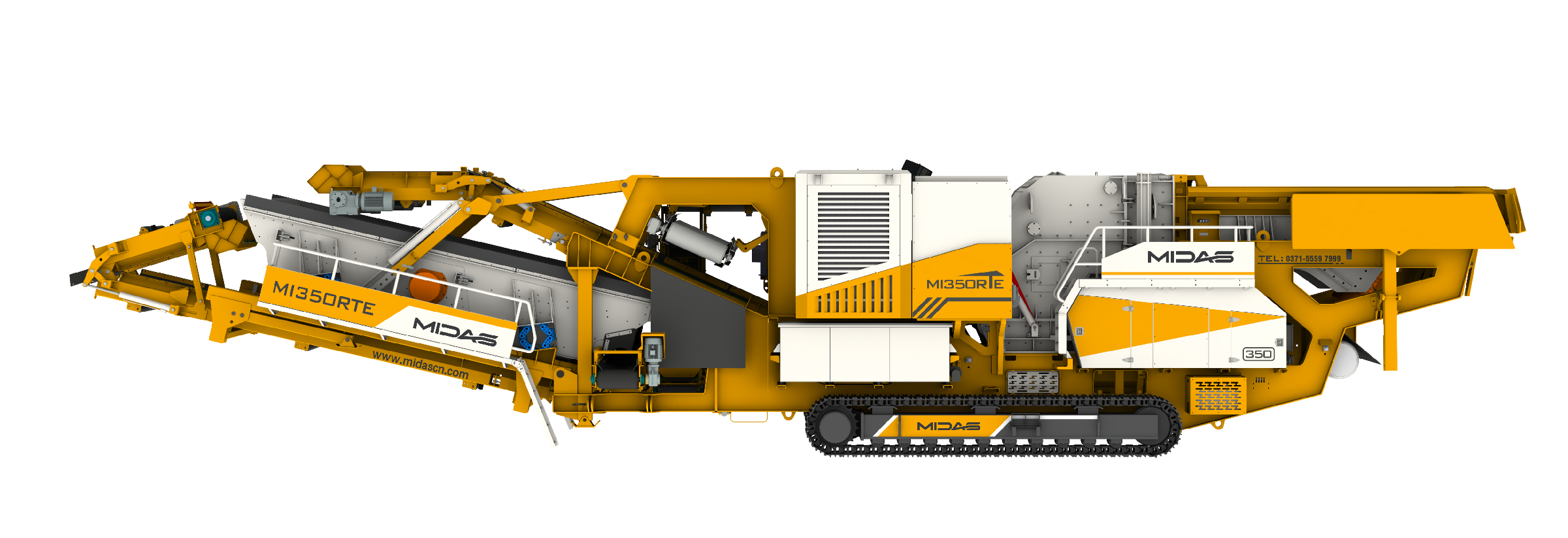

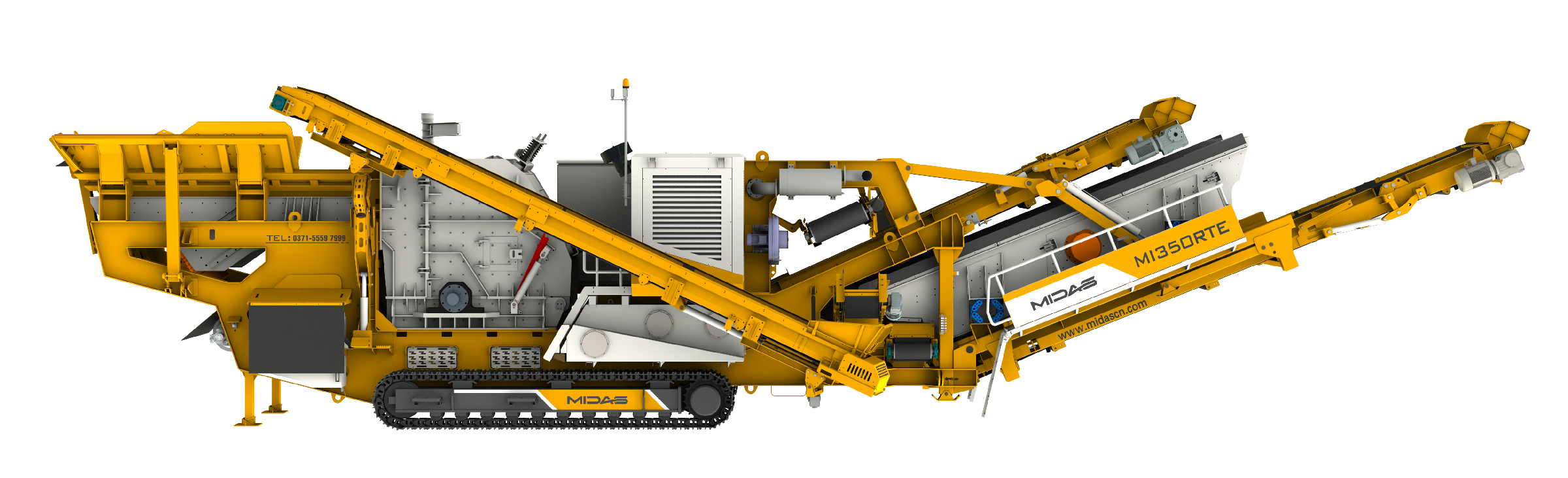

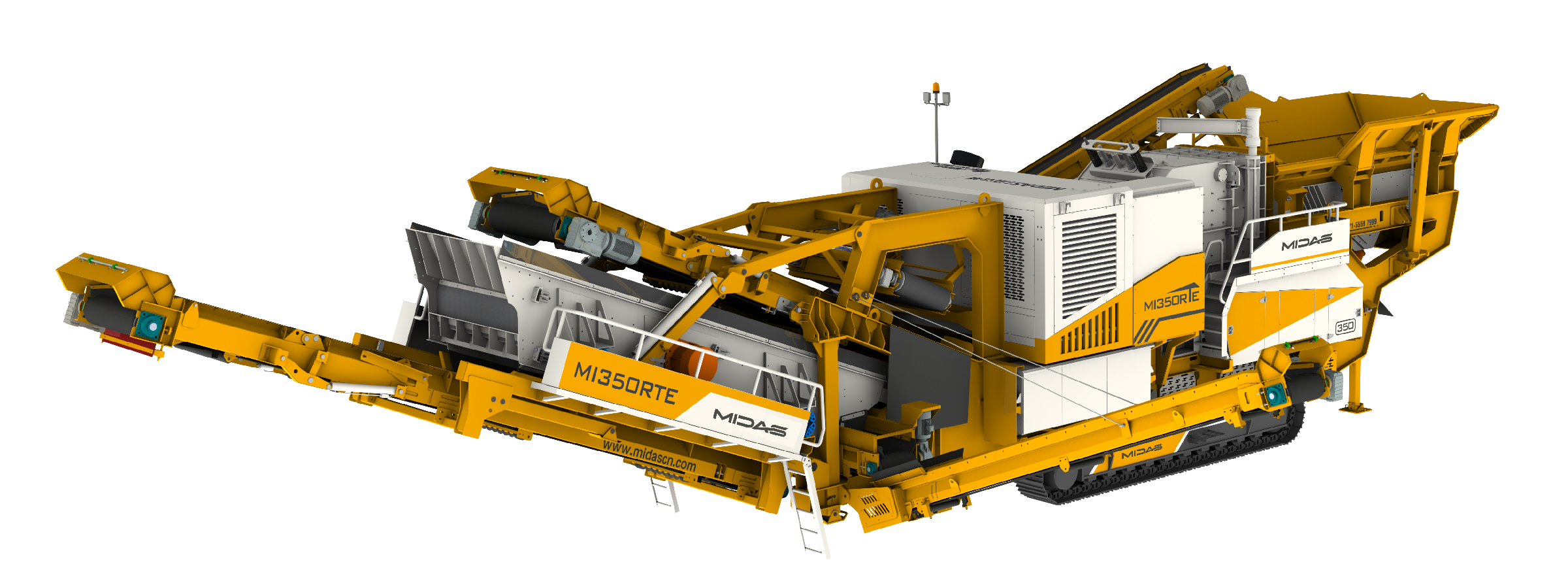

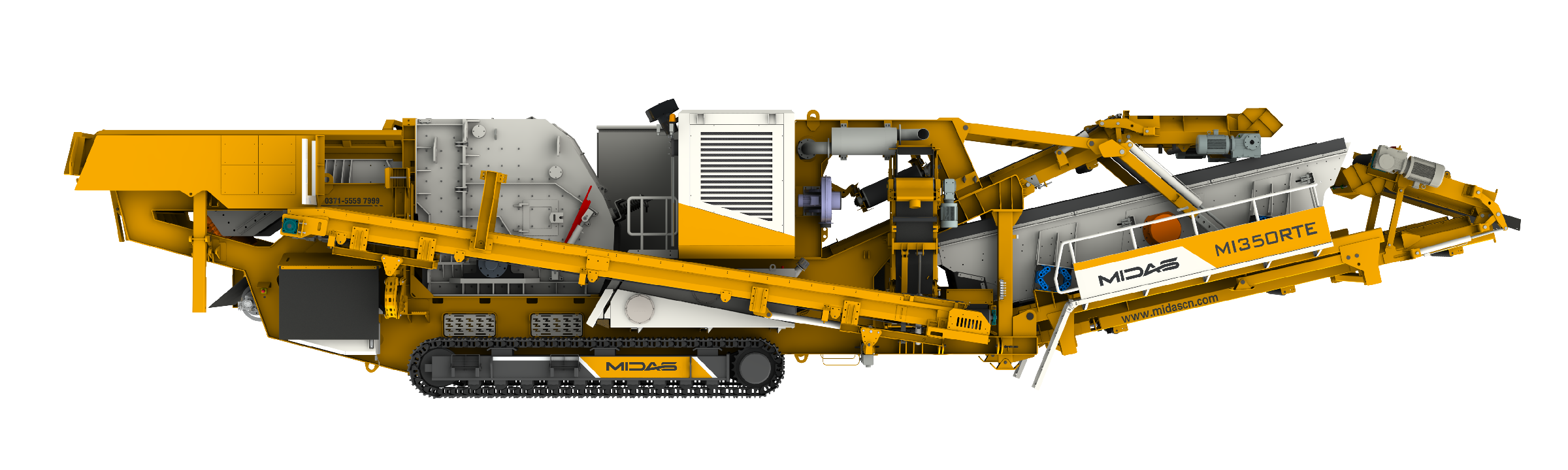

Tracked Mobile Impact Crushing and Screening Plant MI350RTE
Integrated Crushing and Screening,Dual-Power (Diesel and Electric),PLC One-Touch Smart Start
The MIDAS MI-RTE Series Impact Crushing and screening plant performs both crushing and screening functions on a single tracked vehicle. It has been upgraded to a dual-power system (diesel and electric) and is equipped with a PLC one-touch smart start. The machine can be used for both primary and secondary crushing, and is suitable for processing medium-soft rock and construction waste. The entire unit has a wide range of applications, high intelligence, and is simple to operate.
Application scenarios: The plant is used in the primary and secondary crushing stages of medium-soft materials, as well as for mining/ore/coal excavation, concrete mixing plants, dry-mix mortar/power plant desulfurization, quartz sand production, construction waste recycling, and road and bridge construction.
Processing capacity:
250-500 （t/h）
Total system power:
361.7 （KW）
Service hotline:
Product Details
The MIDAS MI-RTE Series Impact Crushing and screening plant performs both crushing and screening functions on a single tracked vehicle. It has been upgraded to a dual-power system (diesel and electric) and is equipped with a PLC one-touch smart start. The machine can be used for both primary and secondary crushing, and is suitable for processing medium-soft rock and construction waste. The entire unit has a wide range of applications, high intelligence, and is simple to operate.
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
MI260RTE | 68 | 322 | PF1213 | 1200*1300 | Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 400kw Power system |
MI350RTE | 74 | 352 | PF1315 | 1300*1500 | Double-deck screening、Side discharge conveyor、Oil and electricity dual-purpose system 500kw Power system |
TX2IE | 65 | 325.3 | PF1213 | 1200*1300 | Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 400kw Power system |
TX3IE | 88 | 376.7 | PF1315 | 1300*1500 | Independent prescreening system、Three-deck screening、Double-side discharge belt conveyor、Oil and electricity dual-purpose system 500kw Power system |
