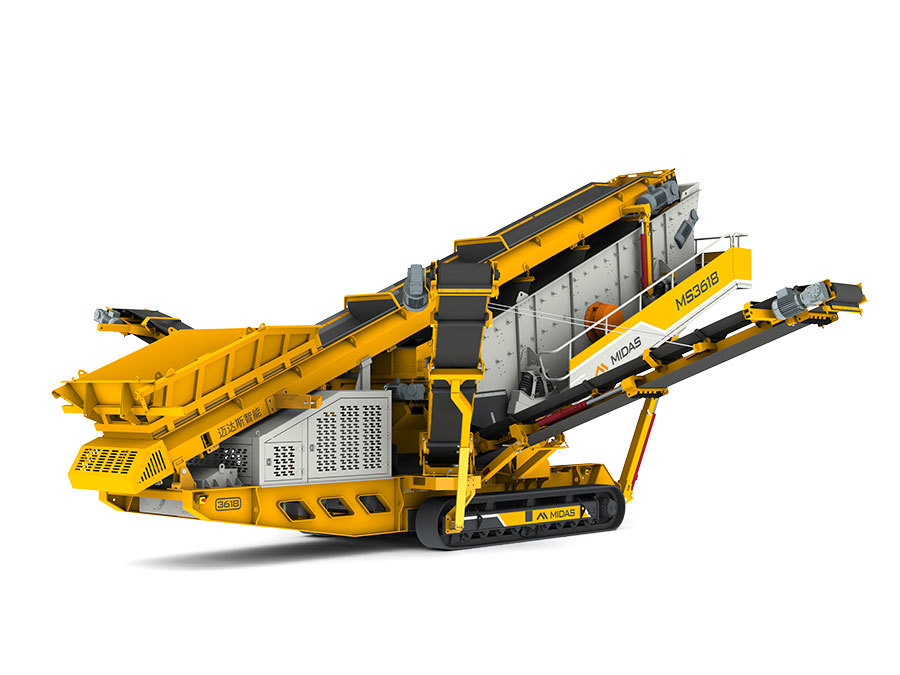

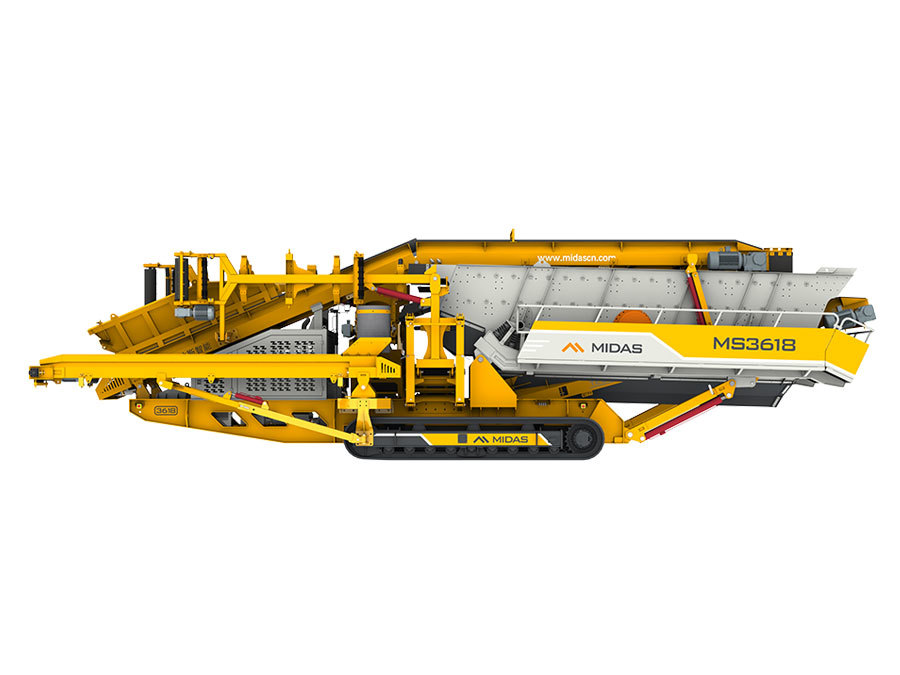

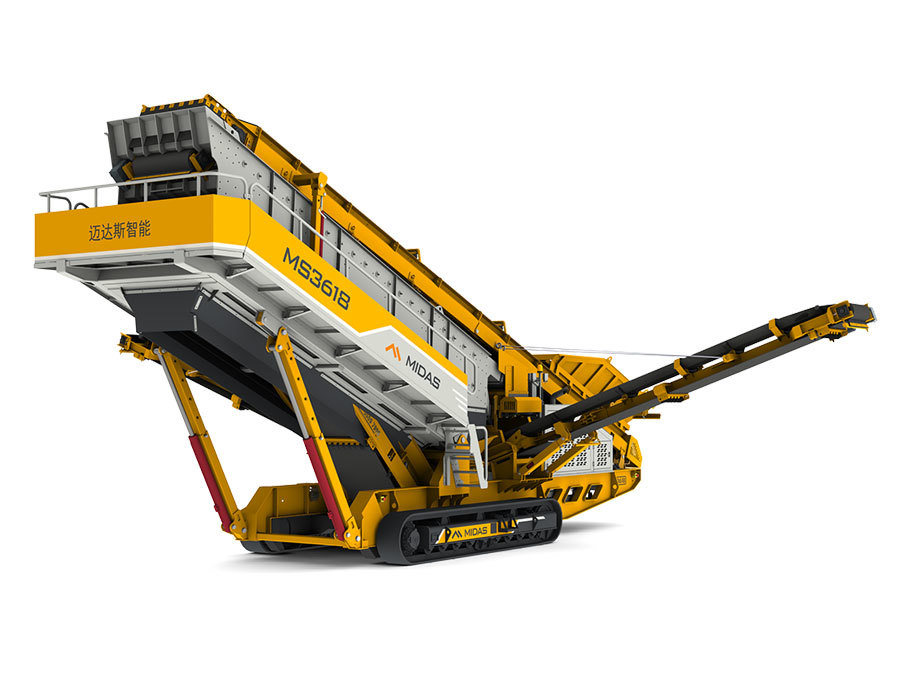

Ms Series Caterpillar Mobile Inclined Screening Plant
Two-stage Screen Body, Precise Screening, Hydraulically Assisted
Midas MS series tracked mobile screening plant is equipped with vehicle-mounted automatic folding belt conveyor, which has a large handling capacity and can be used for fine screening of materials. It is well-suited for screening finished products from various crushed aggregates and construction waste. The entire unit is highly mobile, durable, and exceptionally reliable.
Its application scenarios include the screening and processing of coarse materials, and the grading of sand/pebble aggregates, construction waste, metallurgical/coal materials, and building materials
Processing capacity:
200-500 （t/h）
Total system power:
68.5-108 （KW）
Category:
Service hotline:
Product Details
Midas MDS series tracked mobile screening plant is equipped with vehicle-mounted automatic folding belt conveyor, which has a large handling capacity and can be used for fine screening of materials. It is well-suited for screening finished products from various crushed aggregates and construction waste. The entire unit is highly mobile, durable, and exceptionally reliable.
Product Specifications
Whole plant model | Weight (T) | Power of complete machine (KW) | Crusher model | Crusher size | Optional |
MS3618 | 34 | 68.5 | M3618 | 6000*1800 |
|
MS3618E | 35 | 68.5 | M3618 | 6000*1800 | Oil and electricity dual-purpose system 120kw Power system |
MSF3618 | 39 | 83.5 | M3618 | 6000*1800 | Feeding system |
MSF3618E | 40 | 83.5 | M3618 | 6000*1800 | Feeding system、Oil and electricity dual-purpose system 150kw Power system |
MS3720 | 37 | 74.5 | M3720 | 7000*2000 |
|
MS3720E | 38 | 74.5 | M3720 | 7000*2000 | Oil and electricity dual-purpose system 120kw Power system |
MS5618 | 49 | 108 | M5618 | 6000*1800 |
|
MS5618E | 50 | 108 | M5618 | 6000*1800 | Oil and electricity dual-purpose system 150kw Power system |
